Special Industrial Vehicle

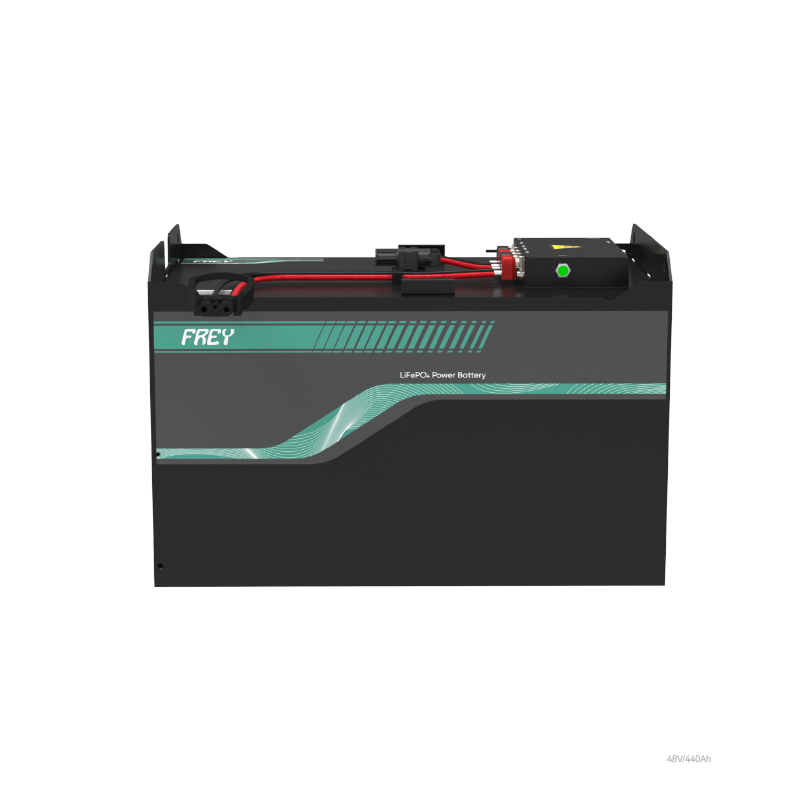

【48V/420Ah】 Industrial Special Vehicle Lithium Battery
● For the special working conditions of industrial vehicles, the high rate lithium iron phosphate battery is specially customized and developed by Frey, which has the characteristics of high rate, long cycle life, high safety performance, strong consistency and wide adaptability to the environment.
● Intelligent battery management system, scientific management of batteries, to achieve automatic balance, extend battery life;
● The key components and electronic control system have been strictly reliability testing and market verification to ensure the safety and stability of the whole machine performance;
●CAN bus data transmission, seamless docking with vehicle control system and charging system.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
Customized 4
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically
【48V/420Ah】 Industrial Special Vehicle Lithium Battery
| item | parameter |
| Nominal voltage(V) | 51.2 |
| Nominal capacity(Ah) | 420 |
| Electricity(kWh) | 21.5 |
| Size | Customizable |
| Weight(kg) | 350 |
| Operating voltage(V) | 44~58.4 |
| Charging voltage(V) | 58.4 |
| Charging current is
recommended(A) |
≤200 |
| Rated operating current(A) | 200 |
| Maximum operating current(A) | 420 |
| Charging temperature(℃) | 0~55 |
| Discharge temperature(℃) | -20~55 |
| Storage temperature(℃) | 0~45 |
| Chemical materials | LiFePO4 |
| Warranty | 5 years or 10,000 hours of work |
| Compatible models | Linde RT16/E16-20/R14-16 series；TOYOTA 7FB10/8FBR10-25/8FBE10-20
8FBN15-30 series；Baoli KBET15-18/KBET20 series |
More Specification Sizes Support Customization(OEM/ODM)
| 24V/210AH | 24V/220AH | 24V/230AH | 24V/315AH | |
|---|---|---|---|---|
| Nominal voltage (V) | 25.6 | |||
| Nominal capacity (Ah) | 210 | 220 | 230 | 300 |
| Electric quantity (kWh) | 5.37 | 5.63 | 5.88 | 7.68 |
| Dimensions | customized on demand | |||
| Weight (Kg) | 75 | 80 | 80 | 105 |
| Operating voltage (V) | 22~29.2 | |||
| Charging voltage (V) | 29.2 | |||
| Recommended charge current (A) | ≤105 | ≤110 | ≤115 | ≤150 |
| Rated operating current (A) | 105 | 110 | 115 | 150 |
| Max operating current (A) | 210 | 220 | 230 | 300 |
| Charging temperature (℃) | 0~55 | |||
| Discharging temperature (℃) | -20~55 | |||
| Storage temperature (℃) | 0~45 | |||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | |||
| Warranty | Warranty for 5 years or 10,000 hours of service | |||
| Available trucks | Linde: RT16/E16-20/R14-16 series; Toyota: 7FB10/8FBR10-25/8FBE10-20/8FBN15-30 series; Baoli:KBET15-18/KBET 20 series | |||
