Special Industrial Vehicle

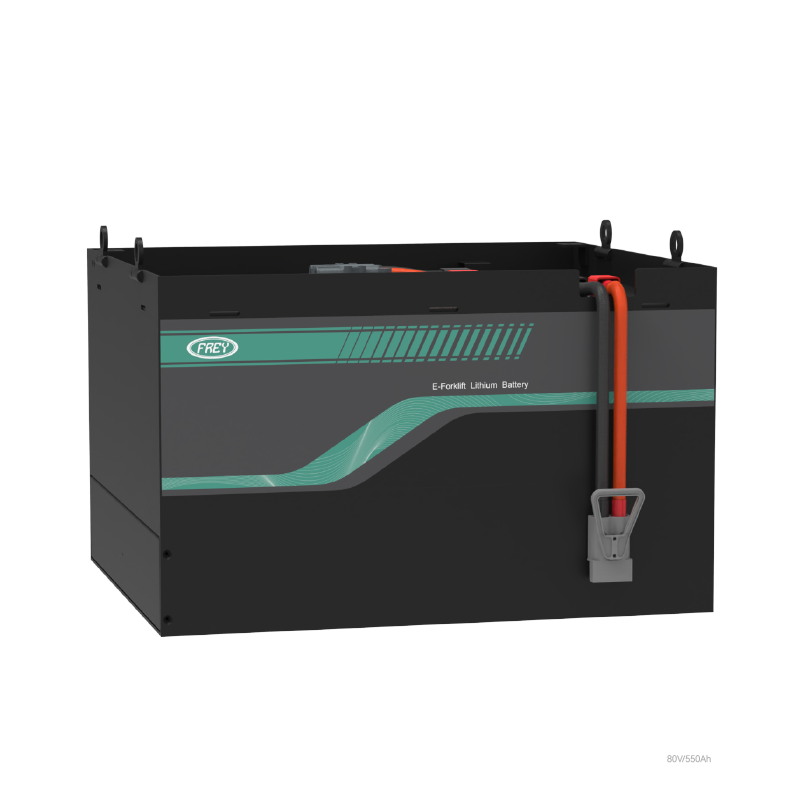

【80V/550Ah】 Industrial Special Vehicle Lithium Battery
● For the special working conditions of industrial vehicles, the high rate lithium iron phosphate battery is specially customized and developed by Frey, which has the characteristics of high rate, long cycle life, high safety performance, strong consistency and wide adaptability to the environment.
● Intelligent battery management system, scientific management of batteries, to achieve automatic balance, extend battery life;
● The key components and electronic control system have been strictly reliability testing and market verification to ensure the safety and stability of the whole machine performance;
●CAN bus data transmission, seamless docking with vehicle control system and charging system.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
Customized 4
【80V/550Ah】 Industrial Special Vehicle Lithium Battery
| item | parameter |
| Nominal voltage(V) | 83.2 |
| Nominal capacity(Ah) | 525 |
| Electricity(kWh) | 43.7 |
| Size | Customizable |
| Weight(kg) | 550 |
| Operating voltage(V) | 71.5~94.9 |
| Charging voltage(V) | 94.9 |
| Charging current is
recommended(A) |
≤200 |
| Rated operating current(A) | 200 |
| Maximum operating current(A) | 500 |
| Charging temperature(℃) | 0~55 |
| Discharge temperature(℃) | -20~55 |
| Storage temperature(℃) | 0~45 |
| Chemical materials | LiFePO4 |
| Warranty | 5 years or 10,000 hours of work |
| Compatible models | Linde E25/E30/E35L series；TOYOTA 7FB30/7FBMF40-50 series；
Baoli KBE25G1/30G1 series |
More Specification Sizes Support Customization(OEM/ODM)
| 24V/210AH | 24V/220AH | 24V/230AH | 24V/315AH | |
|---|---|---|---|---|
| Nominal voltage (V) | 25.6 | |||
| Nominal capacity (Ah) | 210 | 220 | 230 | 300 |
| Electric quantity (kWh) | 5.37 | 5.63 | 5.88 | 7.68 |
| Dimensions | customized on demand | |||
| Weight (Kg) | 75 | 80 | 80 | 105 |
| Operating voltage (V) | 22~29.2 | |||
| Charging voltage (V) | 29.2 | |||
| Recommended charge current (A) | ≤105 | ≤110 | ≤115 | ≤150 |
| Rated operating current (A) | 105 | 110 | 115 | 150 |
| Max operating current (A) | 210 | 220 | 230 | 300 |
| Charging temperature (℃) | 0~55 | |||
| Discharging temperature (℃) | -20~55 | |||
| Storage temperature (℃) | 0~45 | |||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | |||
| Warranty | Warranty for 5 years or 10,000 hours of service | |||
| Available trucks | Linde: RT16/E16-20/R14-16 series; Toyota: 7FB10/8FBR10-25/8FBE10-20/8FBN15-30 series; Baoli:KBET15-18/KBET 20 series | |||
