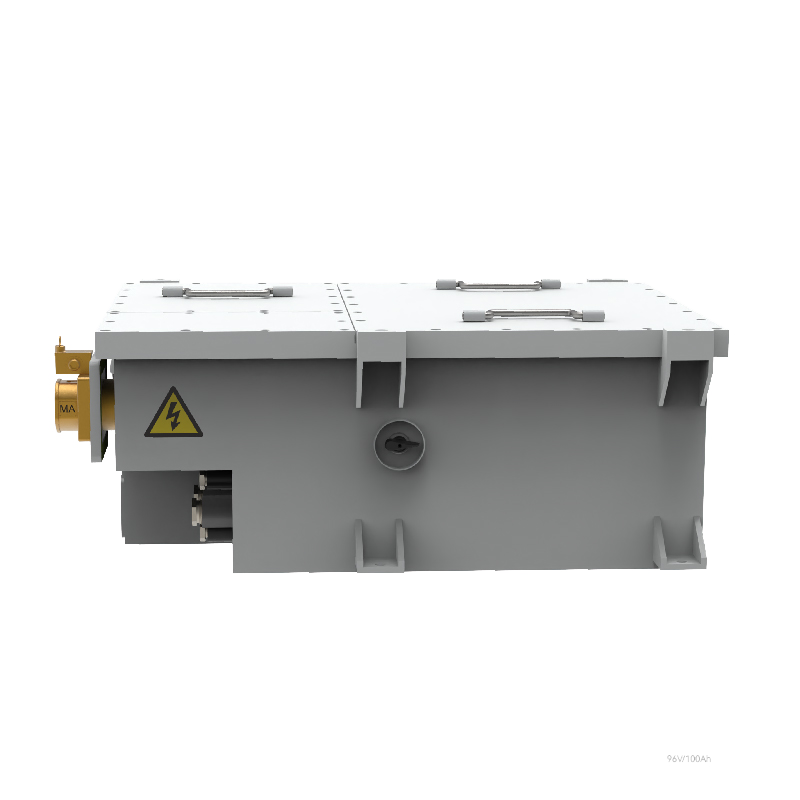

【DXBL 9600/96C(A)】explosion-proof lithium-ion battery
Jiangsu Frey Battery Technology Co., Ltd. is a high-tech enterprise specializing in the research, production, sales, and market application development of high-rate lithium-ion power batteries, battery packs, battery management systems, energy storage batteries, and related integrated products. We are dedicated to providing complete product solutions and comprehensive lifecycle services for global industrial vehicles, mining, energy storage, robotics, and other segmented fields.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized
-
Battesy Weight:
Customized
-
Locomotive Model
Customized test
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically
【DXBL 9600/96 C(A)】Explosion-Proof Lithium-Ion Battery
| Items | Parameters | Remark |
| Model | DXBL 9600/96 C(A) | Ex db I Mb |
| Cell Model | LFL4-100 | 36*130*200mm |
| Casing material for single cell | Aluminum alloy | |
| Standard capacity(0.3CA) | 100Ah | |
| Rated voltage | 96V | Work voltage:3.20V |
| Max.Charge voltage | 109.5V | SingleAve. charge Voltage3.65V |
| Cut-off voltage | 82.5V | SingleAve. Discharge Voltage2.75V |
| Standard charge current | 50A | |
| charging Time | About 2h | |
| Continuous discharge current | 50A | |
| Peak discharge current | 100A | |
| Battery dimension | ≤860*682*355mm | |
| Total weight（Approx.) | About 330 kg | |
| Standard： 0℃~45℃ | ||
| Charge method (CC/CV) | Discharg： -20℃~55℃ | |
| Storage：
(Temperature)：20℃~45℃ (Humidity)：25％～65% |
||
| PACK IP Grade | IP54 |
More Specifications Size Lithium Battery Support Customization(OEM/ODM)
| 96V100AH | 140.8V100AH | 192V100AH | 320V100AH | 192V230AH | 320V230AH | |
|---|---|---|---|---|---|---|
| Nominal voltage (V) | 96 | 140.8 | 192 | 320 | 192 | 320 |
| Nominal capacity (Ah) | 100 | 100 | 100 | 100 | 230 | 230 |
| Electric quantity (kWh) | 9600 | 14080 | 19200 | 32000 | 44160 | 73600 |
| Dimensions | 860*682*355mm | 980*680*330mm | 1038*774*342mm | 1370*919*332mm | 1320*1050*330mm | 1750*1050*330mm |
| Weight (Kg) | 330 | 390 | 510 | 810 | 730 | 1140 |
| Recommended charge current (A) | 50 | 50 | 50 | 50 | 100 | 100 |
| Rated operating current (A) | 50 | 50 | 50 | 50 | 100 | 100 |
| Max operating current (A) | 100 | 100 | 100 | 100 | 230 | 230 |
| Charging temperature (℃) | 0--55 | |||||
| Discharging temperature (℃) | -20-55 | |||||
| Storage temperature (℃) | 10--35 | |||||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | |||||
| specification | DXBL9600/96C(A) | DXBL14080/140.8C(A) | DXBL19200/192C(A) | DXBL32000/320C(A) | DXBL44160/192C(A) | DXBL73600/320C(A) |
