Mining Area
Explosion-proof lithium battery
Jiangsu Frey Battery Technology Co., Ltd. is a high-tech enterprise specializing in the research, production, sales, and market application development of high-rate lithium-ion power batteries, battery packs, battery management systems, energy storage batteries, and related integrated products. We are dedicated to providing complete product solutions and comprehensive lifecycle services for global industrial vehicles, mining, energy storage, robotics, and other segmented fields.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized
-
Battesy Weight:
Customized
-
Locomotive Model
Customized test

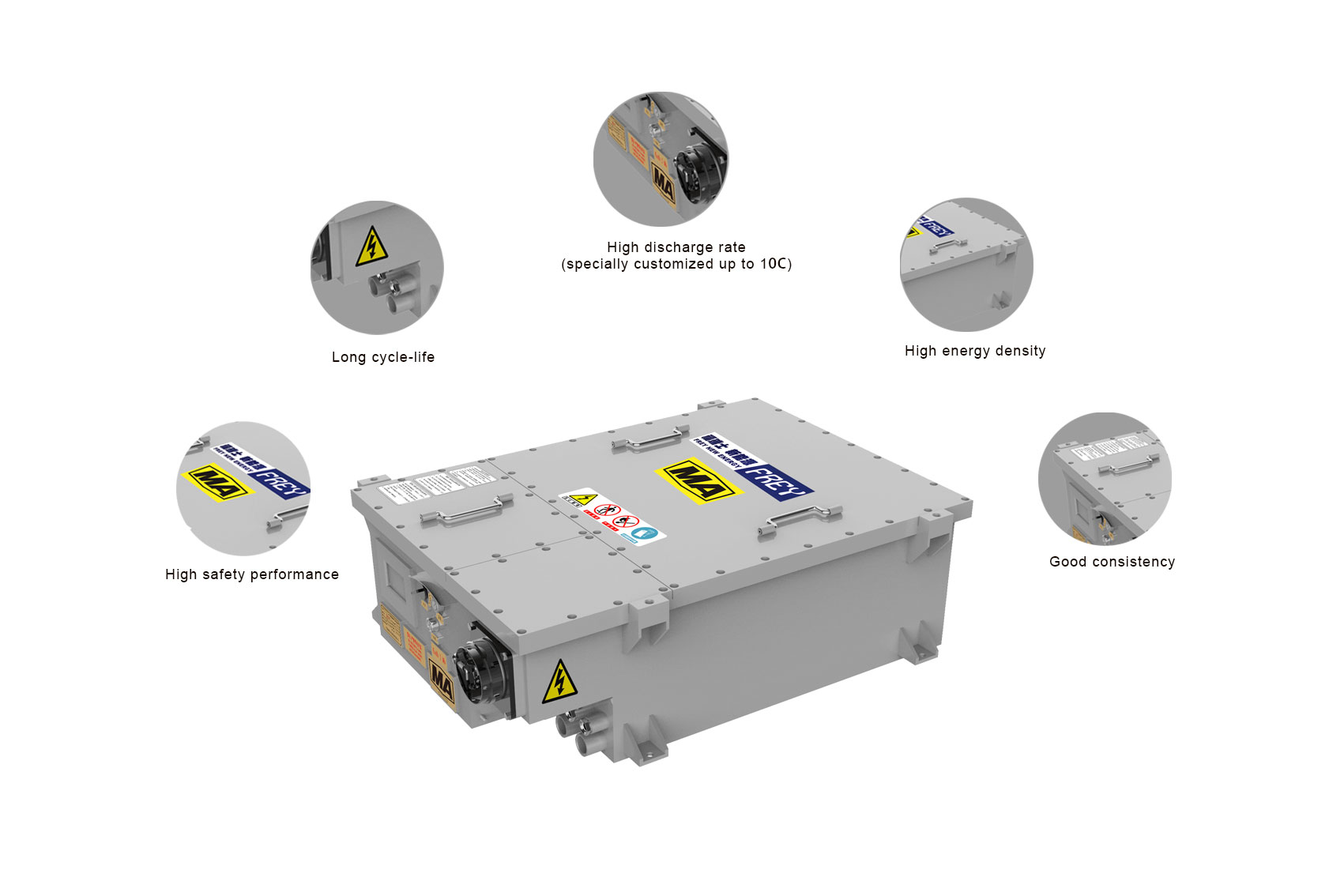

Explosion-Proof Lithium Battery
| 96V100AH | 140.8V100AH | 192V100AH | 320V100AH | 192V230AH | 320V230AH | |
|---|---|---|---|---|---|---|
| Nominal voltage (V) | 96 | 140.8 | 192 | 320 | 192 | 320 |
| Nominal capacity (Ah) | 100 | 100 | 100 | 100 | 230 | 230 |
| Electric quantity (kWh) | 9600 | 14080 | 19200 | 32000 | 44160 | 73600 |
| Dimensions | 860*682*355mm | 980*680*330mm | 1038*774*342mm | 1370*919*332mm | 1320*1050*330mm | 1750*1050*330mm |
| Weight (Kg) | 330 | 390 | 510 | 810 | 730 | 1140 |
| Recommended charge current (A) | 50 | 50 | 50 | 50 | 100 | 100 |
| Rated operating current (A) | 50 | 50 | 50 | 50 | 100 | 100 |
| Max operating current (A) | 100 | 100 | 100 | 100 | 230 | 230 |
| Charging temperature (℃) | 0--55 | |||||
| Discharging temperature (℃) | -20-55 | |||||
| Storage temperature (℃) | 10--35 | |||||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | |||||
| specification | DXBL9600/96C(A) | DXBL14080/140.8C(A) | DXBL19200/192C(A) | DXBL32000/320C(A) | DXBL44160/192C(A) | DXBL73600/320C(A) |
