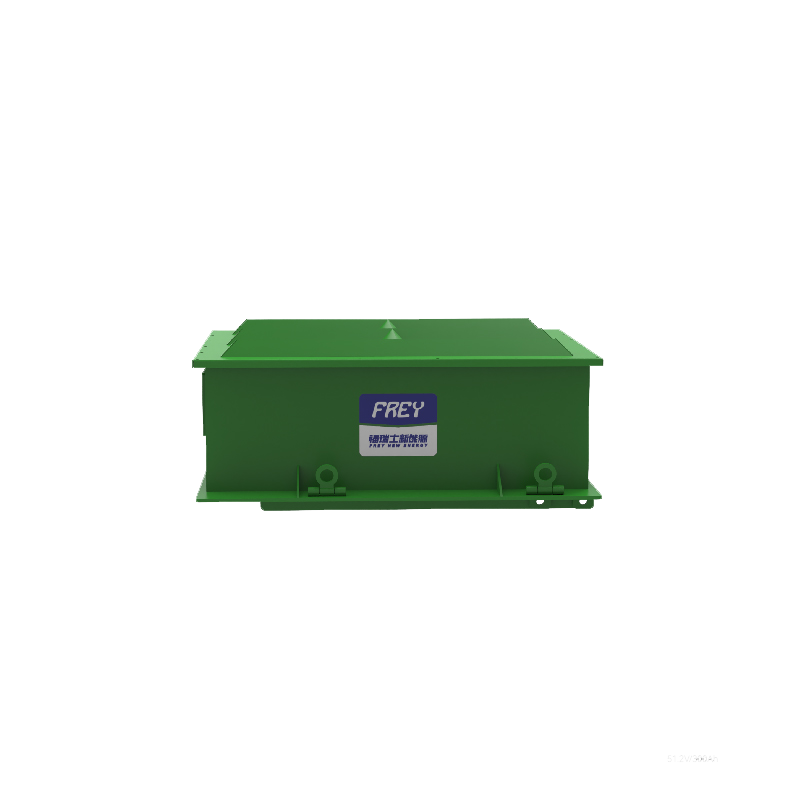

【DXL 15360/51.2C(A)】General Mining Lithium Battery
Fast Charging: 2–4 hours charging time, significantly improving equipment utilization.
Eco-friendly: No lead, cadmium, or acidic gas emissions, protecting the working environment.
Long Cycle Life: ≥4000 cycles, 5–8 years lifespan, far exceeding lead-acid batteries.
Maintenance-free Design: No electrolyte refilling or routine monitoring required, reducing maintenance costs.
BMS Protection: Real-time monitoring of battery status to prevent overcharge, overdischarge, and temperature anomalies.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
test
Customized 4
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically

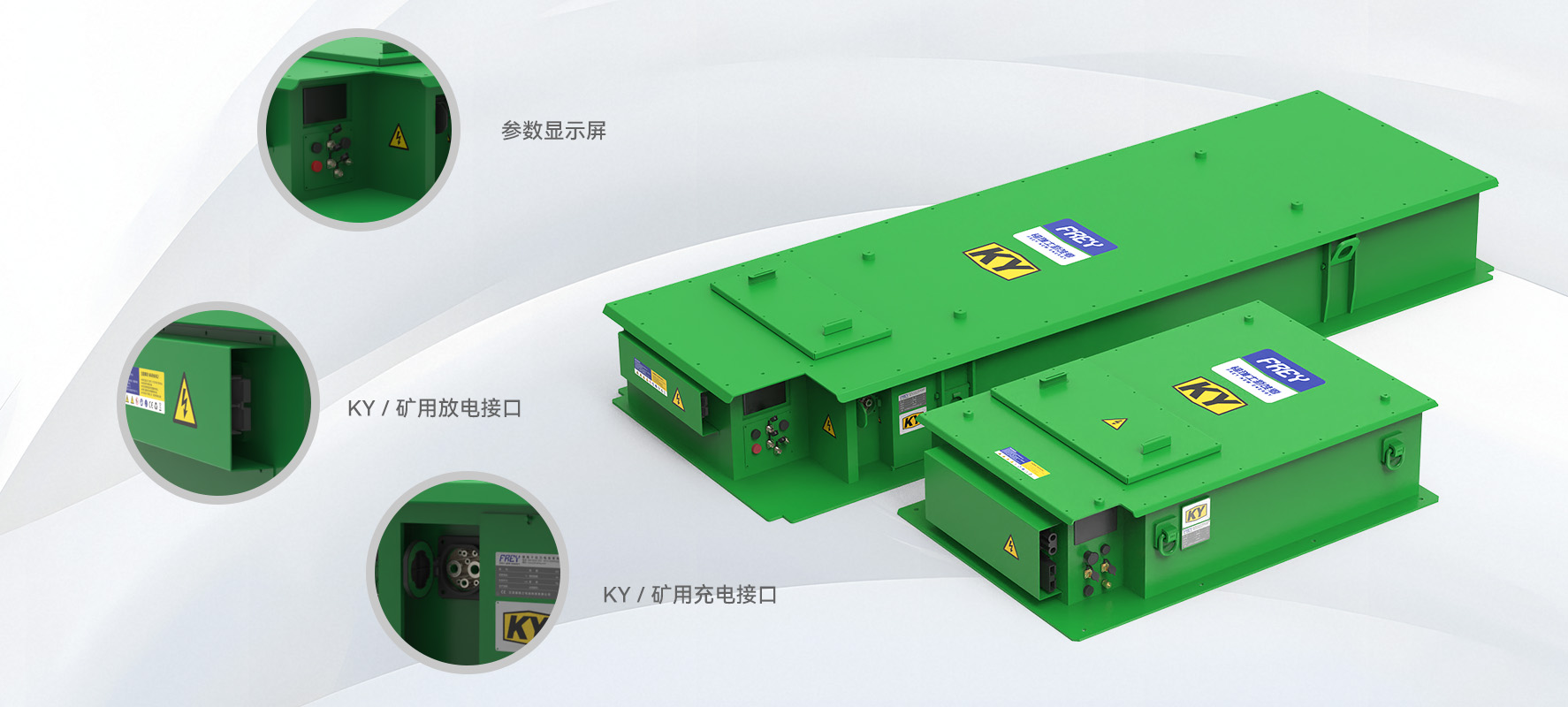

【DXL 15360/51.2C(A)】General Mining Lithium Battery
| Items | Parameters | Remark |
| Model | DXL 15360/51.2 C(A) | |
| Cell Mode | FREY36130290-100Ah | 36*130*290mm |
| Casing material for single cell | Aluminum alloy | |
| Standard capacity(0.3CA) | ≥300Ah | |
| Rated voltage | 51.2V | Work voltage:3.20V |
| Max.Charge voltage | 58.4V | SingleAve. charge Voltage3.65V |
| Cut-off voltage | 44V | SingleAve. Discharge Voltage2.75V |
| Standard charge current | ≤100A | |
| charging Time | About 3h | |
| Continuous discharge current | 150A | |
| Peak discharge current | 200A | |
| Battery dimension | ≤910*920*400mm | |
| Total weight（Approx.) | About 300 kg | |
| Standard：0℃～45℃ | ||
| Charge method (CC/CV) | Discharge：-20℃～55℃ | |
| Storage：
(Temperature)：20℃～45℃
(Humidity)：25％～65％ |
||
| PACK IP Grade | IP54 | |
| Rest time | 6h | |
| Model | 2.5T Electric locomotives |
More Specifications Size Lithium Battery Support Customization(OEM/ODM)
| 51.2V300AH | 96V300AH | 140.8V400AH | 192V500AH | |
|---|---|---|---|---|
| Nominal voltage (V) | 51.2 | 96 | 140.8 | 192 |
| Nominal capacity (Ah) | 300 | 300 | 400 | 500 |
| Electric quantity (kWh) | 15360 | 28800 | 56320 | 96000 |
| Dimensions | 938*936*350 | 1397*1000*350 | 2200*1100*350 | 2987*1220*350 |
| Weight (Kg) | 320 | 530 | 970 | 1600 |
| Recommended charge current (A) | ≤150 | ≤150 | ≤200 | ≤200 |
| Rated operating current (A) | 150 | 150 | 200 | 200 |
| Max operating current (A) | 300 | 300 | 400 | 500 |
| Charging temperature (℃) | 0--55 | |||
| Discharging temperature (℃) | -20-55 | |||
| Storage temperature (℃) | 10--35 | |||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | |||
| specification | DXL15360/51.2CA | DXL28800/96CA | DXL56320/140.8CA | DXL96000/192CA |
| Record number | CITCKY22.0721 | CITCKY22.0708 | CITCKY22.0902 | CITCKY22.0903 |
