Special Industrial Vehicle

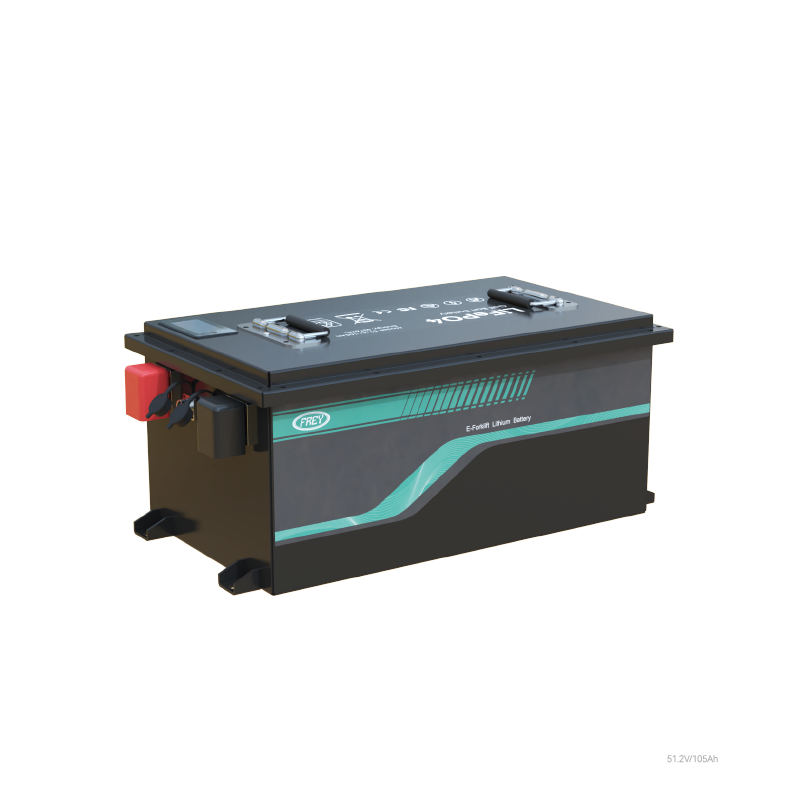

Golf Lithium Battery
Extreme Environment Stability: LiFePO₄ chemistry with a thermal runaway threshold of 350–500°C. Explosion-proof even under puncture or collision, ensuring safety in vehicle scenarios.
Shock & Weather Resistance: IP67-rated enclosure + honeycomb shock-absorbing structure. Passed 100,000 km simulated road spectrum testing, suitable for complex terrains like gravel and slopes.
Breakthrough Cycle Life: ≥4000 cycles (100% DoD), 7–8 years lifespan. Reduces replacement costs by 60% compared to lead-acid batteries.
High-rate Discharge Performance: Ultra-fast discharge capability (e.g., 51.2V 105Ah battery delivers 5.38kW instantaneously). 40% increase in climbing torque, effortlessly handles 30° slope impacts.
Safety Features: Built-in display for low-power alerts. Integrated BMS with overcharge/overdischarge protection.
Multi-voltage Platform Compatibility: 51.2V/64V/76.8V systems compatible with Club Car, E-Z-GO, and other mainstream models.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
Customized 4
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically
Golf Lithium Battery
| 51.2V/105AH | 51.2V/160AH | 76.8V/105AH | |
|---|---|---|---|
| Nominal voltage (V) | 51.2 | 51.2 | 51.2 |
| Nominal capacity (Ah) | 105 | 160 | 105 |
| Electric quantity (kWh) | 5376 | 8192 | 8064 |
| Dimensions | customized on demand | ||
| Weight (Kg) | 40 | 60 | 58 |
| Operating voltage (V) | 44-58 | 44-58 | 66-87.6 |
| Charging voltage (V) | 58.4 | 58.4 | 87.6 |
| Recommended charge current (A) | ≤55 | ≤180 | ≤55 |
| Rated operating current (A) | 105 | 160 | 105 |
| Max operating current (A) | 150 | 200 | 230 |
| Charging temperature (℃) | 0~55 | ||
| Discharging temperature (℃) | -20~55 | ||
| Storage temperature (℃) | 0~45 | ||
| Chemical system | Lithium-Ferro Phosphate (LiFePO4) | ||
| Warranty | warranty for 5 years or 10,000 hours of service | ||
| Available trucks | Golf cart | ||
