Special Industrial Vehicle
Plastic-case Lithium Battery
Extreme Environment Stability: LiFePO₄ chemistry with a thermal runaway threshold of 350–500°C. Explosion-proof even under puncture or collision.
Shock & Weather Resistance: IP67-rated enclosure + honeycomb shock-absorbing structure. Passed 100,000 km simulated road spectrum testing, suitable for complex terrains.
Breakthrough Cycle Life: ≥4000 cycles (100% DoD), 7–8 years lifespan. Reduces replacement costs by 60% vs. lead-acid batteries.
High-rate Discharge Performance: Ultra-fast discharge (e.g., 51.2V 105Ah battery delivers 5.38kW instantaneously). 40% climbing torque increase for 30° slope impacts.
Multi-voltage Platform Compatibility: 12.8V, 25.6V, 51.2V, 64V, 76.8V systems.
Safety Features: Built-in BMS with overcharge/overdischarge protection. Optional Bluetooth version available.
-
Battery System:
Customized 1
-
Battery Dimensions:
Customized 2
-
Battesy Weight:
Customized 3
-
Customized 4
Safety
Needle puncture, short circuit, hightemperature, extrusion, drop test. Nofire or explosion.
Reliability
a. The actual lifespan so far hasexceeded 20,000 hours and still in good running condition with the remaining capacity still above 80%b. The failure rate of the products inthe last 10 years is ontrolled below3%c.Customer satisfaction rate is 100%
Stability
Vehicle standards,UN38.3MSDS etc
Productivity
Under 80% DOD when in use, and fullcharge once a weekit can increase thebattery life by about 20% theoretically

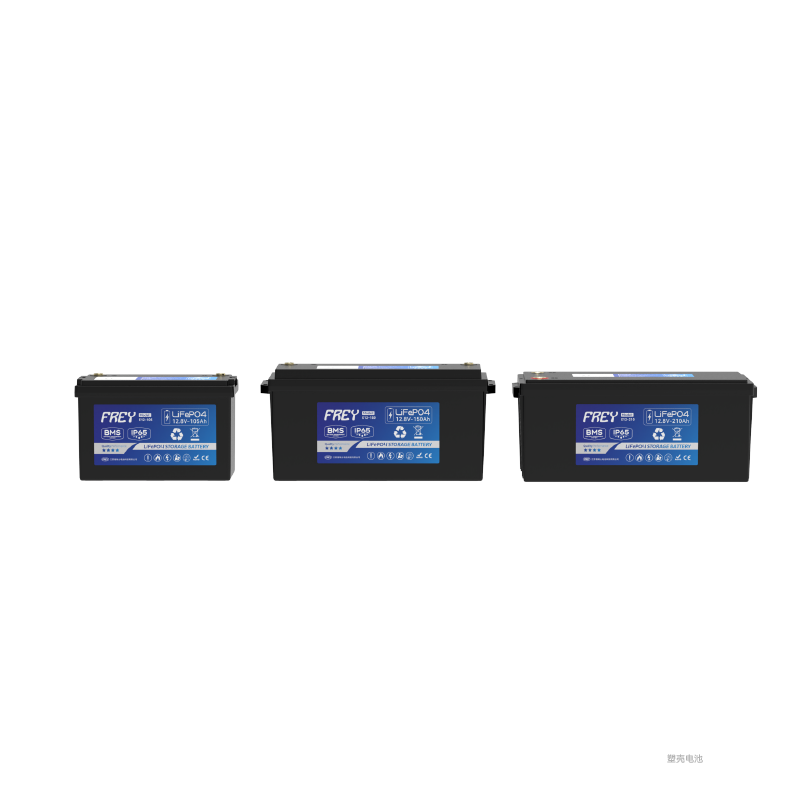

Plastic-case lithium battery
| 型号 | E12-105 | E12-150 | E12-210 |
| Nominal Voltage (V) | 12.8 | 12.8 | 12.8 |
| Nominal Capacity (Ah) | 105 | 150 | 210 |
| Power (Wh) | 1344 | 1920 | 2688 |
| Dimensions | 339*185*218 | 502*186*243 | 522*238*218 |
| Battery Weight (kg) | 12.5 | 13 | 20 |
| Operating Voltage (V) | 10~14.6 | 10~14.6 | 10~14.6 |
| Charging Voltage (V) | 14.6 | 14.6 | 14.6 |
| Recommended Charging Current (A) | <25 | <40 | <100 |
| Rated Operating Current (A) | <100 | <150 | <200 |
| Maximum Operating Current (A) | 100 | 150 | 200 |
| Cycle life | ≥2200 | ≥2200 | ≥2200 |
| Operating Humidity | 60 ± 25%R.H. | ||
| Charging Temperature (℃) | 0~55 | ||
| Discharge Temperature (℃) | -20~55 | ||
| IP Grade | IP65 | ||
| Chemical Material | LFP | ||
| Warranty | 3 years or working time 6000 hours | ||
| Applied | Golf carts, tricycles, Scissor lift,yachts, ships, etc | ||
